EURO 20 Type 23

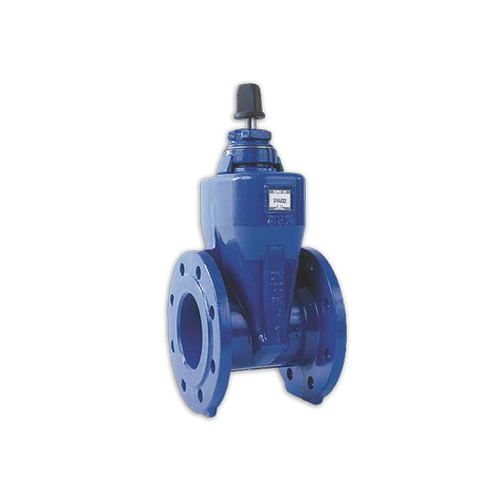

euro23

Description:

EURO 23 VERSION (SHORT PATTERN)

• DN 40 – 400
• PN 10 - 16

EURO 20 NG gate valve, with more than 4.5 million pieces installed in 110 countries, thanks to their widely recognized resistance and reliability. It is a sectioning equipment with a wedge completely covered in EPDM elastomer, intended to be used in the fully closed or fully open position.

It can be installed in water supply and distribution networks, in irrigation networks, in fire protection and within industrial sites.

It allows to interrupt the flow of water inside a pipeline at any time and to facilitate the intervention and maintenance operations of the networks.

It can be installed horizontally, vertically or even tilted. The peculiarity of EURO 20 NG is the boltless autoclave body-cap connection, the best solution for corrosion protection in case of valve burial or permanent immersion.

Allows maintenance of the secondary seal on the operating shaft with the valve under pressure.

Applications: Water Hydro Irrigation Industry

FEATURES

• Performance and design according to EN1074-1 e 2
• Face to Face dimension according to 14 following  EN 558  (SHORT)
• Flanges drilling in according to EN 1092
• Gate encapsulated EPDM in according to EN 681-1 – WA for potable water.
• Marking EN 19
• Hydraulic test in  accordance with the prescriptions EN 1074 1 and 2, ISO 5208 and EN 12266 leak Rate A
• Motorizable version with EN ISO 5210 connection

MATERIALS

• Body: Ductile Iron EN-GJS-400-15 o 500-7 following EN 1563
• Gate : Ductile Iron EN-GJS-400-15 following EN 1563 EPDM encapsulated secondo EN 681-1
• Stem: stainless steel AISI 420
• Bush and operating nut : Brass CuZn39Pb2
• Reinforced version upon request

AUTOMATION AND ACCESSORIES

• Handwheel
• Operating cap
• Telescopic or fixed Spindle
• Multiturn Actuato

CORROSION PROTECTION

• Body and valve disc epoxy powder coated in every part in accordance with EN14901 layer thickness min. 250 μm, (300 μm  reinforced version).
