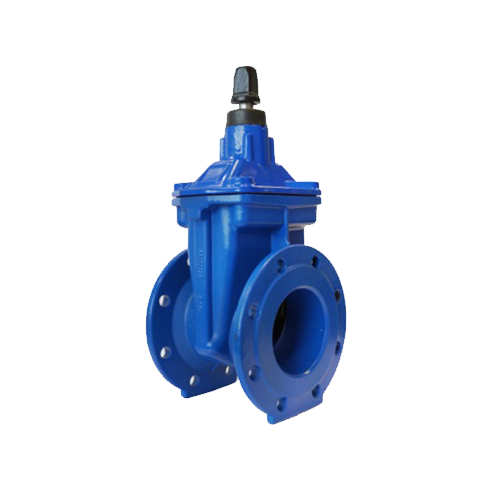

EURO 20 NEW
Description:
Available in long or short body
• DN 40 – 300
• PN 10 – 16
From the experience of EURO 20 NG gate valves, the new EURO 20 NEW gate valve is born, equally resistant and reliable. EURO 20 gate valves are sectioning equipment with wedge completely covered in EPDM elastomer, intended to be used in fully closed or fully open position.
They can be installed in water supply and distribution networks, in irrigation networks, in fire protection and within industrial sites.
They allow at any moment to interrupt the flow of water inside a pipeline and to facilitate the operations of intervention and maintenance of the networks.
They can be installed horizontally, vertically or even tilted. The body-cap connection is made by means of bolts protected with wax.
The EURO 20 NEW gate valve allows maintenance of the secondary seal on the operating shaft with the valve under pressure.
Polyamide-coated wedge side guides reduce friction and ensure low maneuvering torque.
Features
Features
• Performance and design according to EN1074-1 e 2
• Face to Face dimension according to 15 following EN 558 (LONG)
• Face to Face dimension according to 14 following EN 558 (SHORT)
• Flanges drilling in according to EN 1092
• Gate encapsulated EPDM in according to EN 681-1 – WA for potable water.
• Marking EN 19
• Hydraulic test in accordance with the prescriptions EN 1074 1 and 2, ISO 5208 and EN 12266 leak Rate A
Materials
Materials
• Body: Ductile Iron EN-GJS-400-15 o 500-7 following EN 1563
• Gate : Ductile Iron EN-GJS-400-15 following EN 1563 EPDM encapsulated secondo EN 681-1
• Stem: stainless steel AISI 420
• Bush and operating nut : Brass CuZn39Pb2
Automation and accessories
Automation and accessories
• Handwheel
• Operating cap
• Telescopic or fixed Spindle
• Multiturn Actuator
Corrosion protection
Corrosion protection
• Body and valve disc epoxy powder coated in every part in accordance with EN14901 layer thickness min. 250 μm
